Hydraulic Quick Release Coupling

Full passage for unrestricted flow of medium

Floating ball provides positive seal

Direction of flow indicated by milled slot in control spindle

Valve positioning controlled by a stop pin and limit washer

Fluoroelastomer O-rings (standard)

Phosphate coated carbon steel valve body (standard)

Brand:
JAZZY

Availability:

Quantity:



Inquire Add to Basket

JAZZY ball valve

————QUICK RELEASE COUPLING Design Feature & Options————

For fasr and easy connections of Hydraulis Hose,The JAZZY range of fluid components include the DELOK series of Quick Release Coupling, with products complying to international standard ISO7241-A & B, ISO 5675 and ISO 16028, having poppet and flat face valve respectively.

The standardized design assures the complete interchangeability with corresponding coupings currently in use.

Made from high strangth carbon steel as the basic material, hardened in parts subject to wear, DELOK couplings feature a chrome-III znic plating with a long lasting resistance to oxidation (TOP COAT, patented).

Hydraulic Quick Release Coupling

___QUICK RELEASE COUPLING Design___

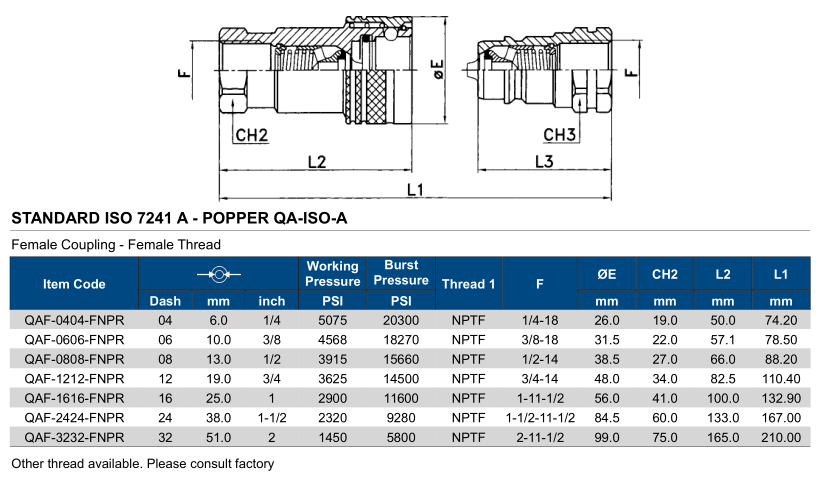

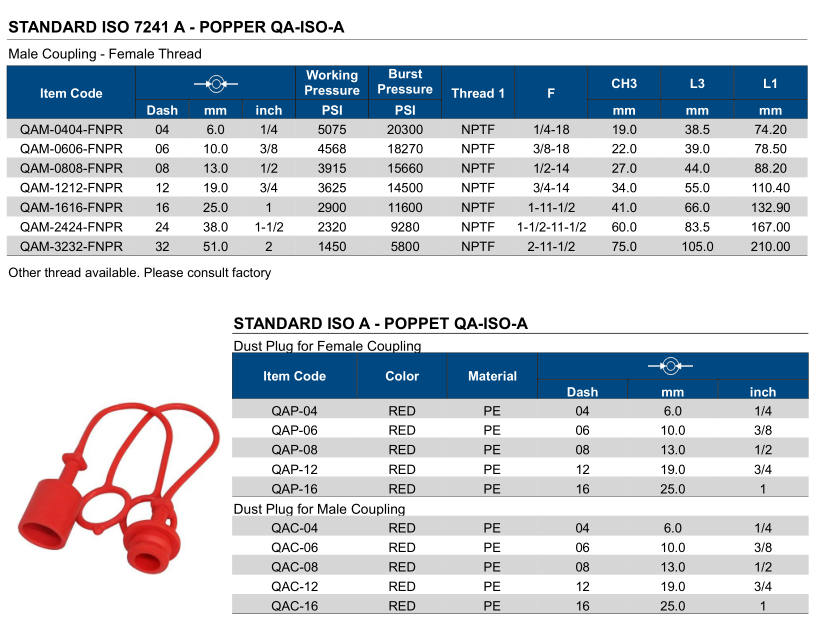

ISO-A range includes the ture general purpose quick release couplings, with sizes from 1/4” to 1-1/2”, BSPP,NPTF and metric threaded connections, and working pressure up to 350 bar. Agricultural machinery is the main application for ISO-A and ISO-A couplings.

Hydraulic Quick Release Coupling

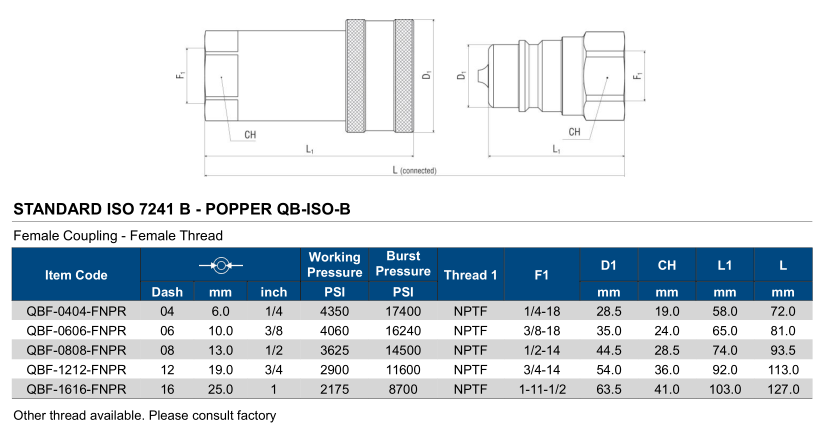

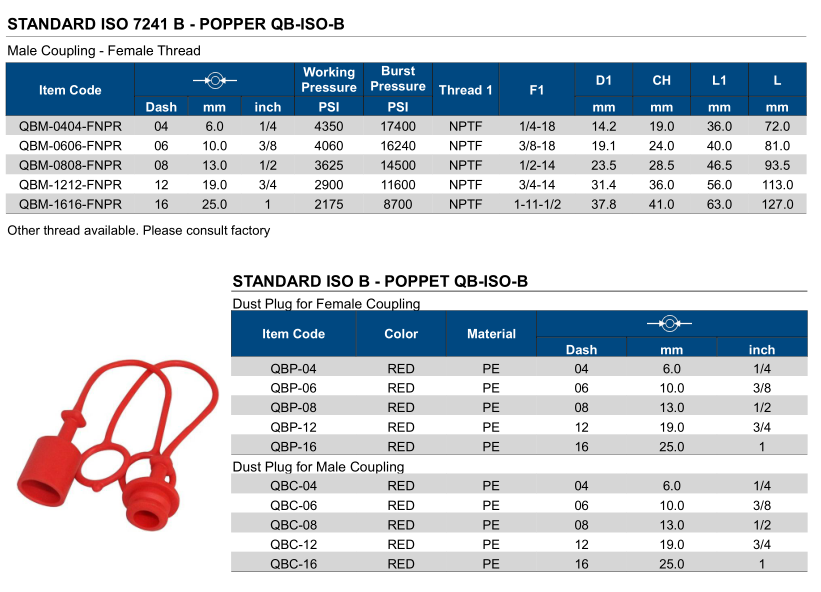

ISO 7241-1 B series is more employes in the industrial sector (pressure can reach 400 bar), for equipment powered and controlled by hydraulic systems.

Hydraulic Quick Release Coupling

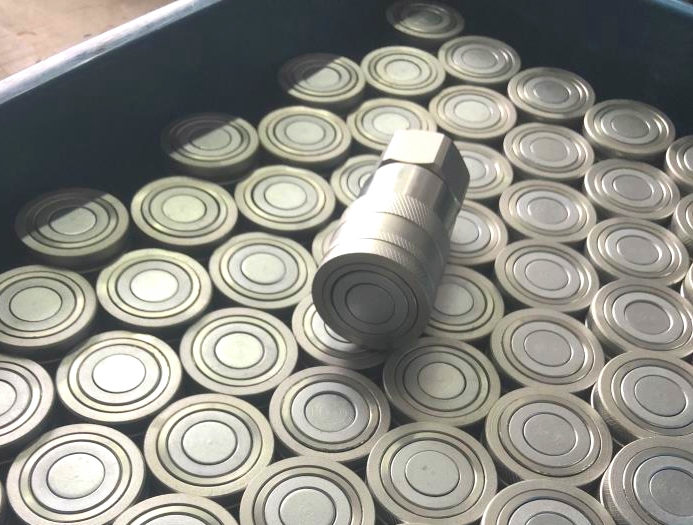

___Product Display___

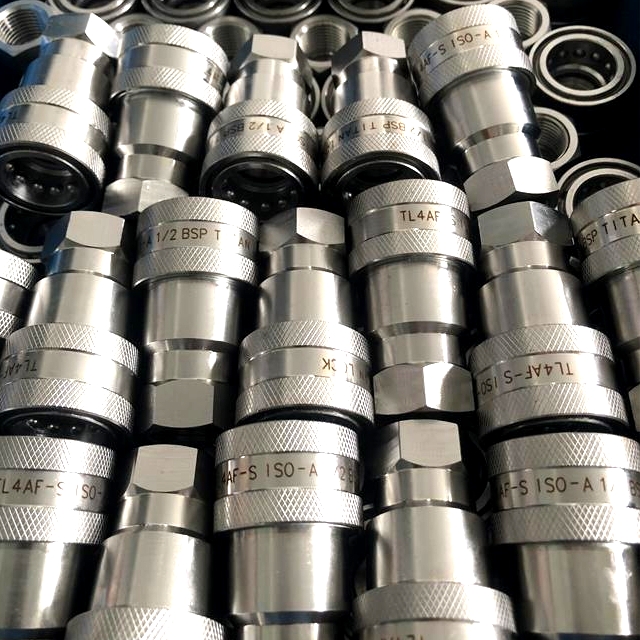

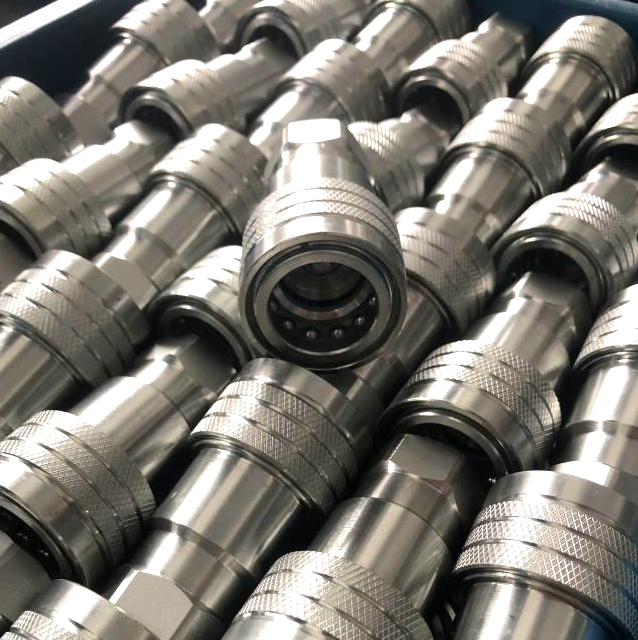

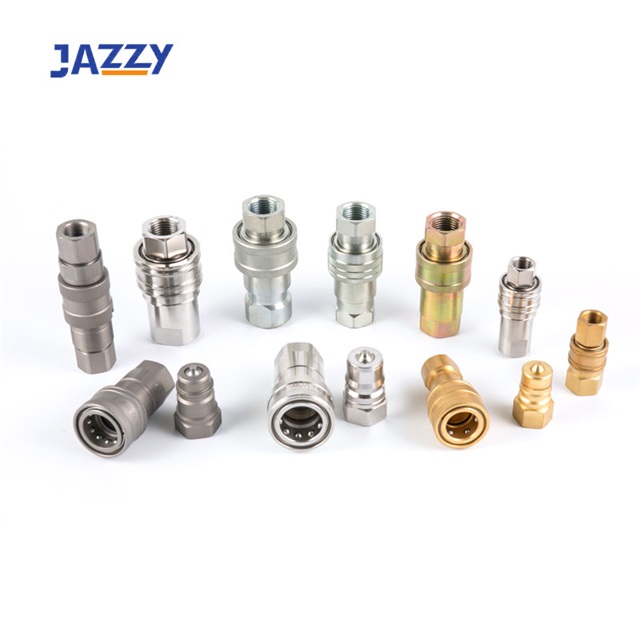

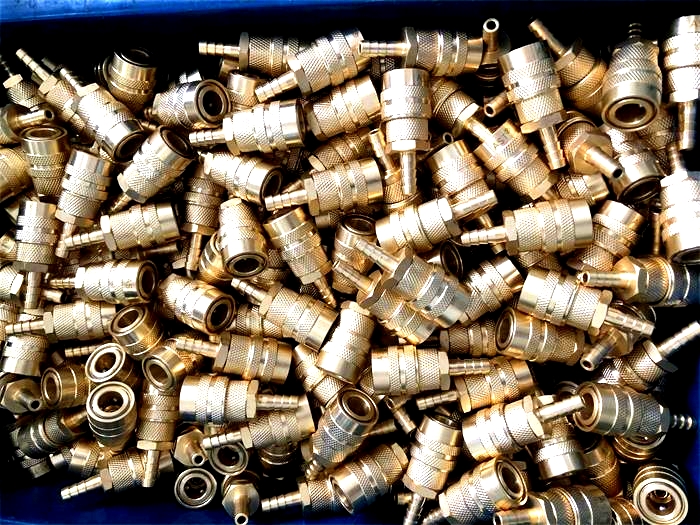

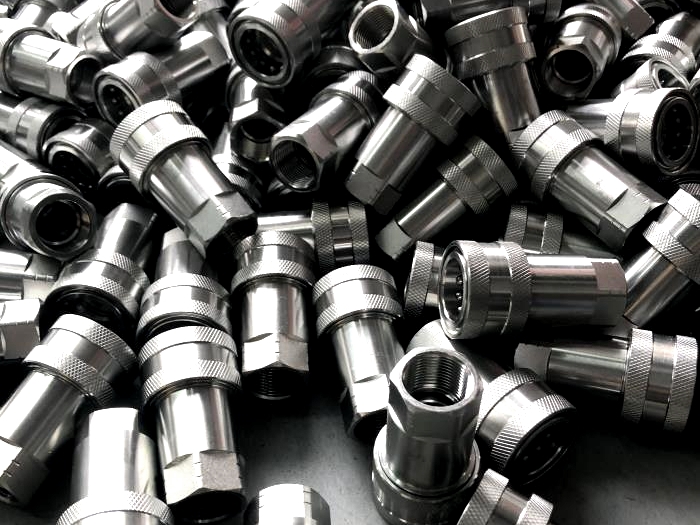

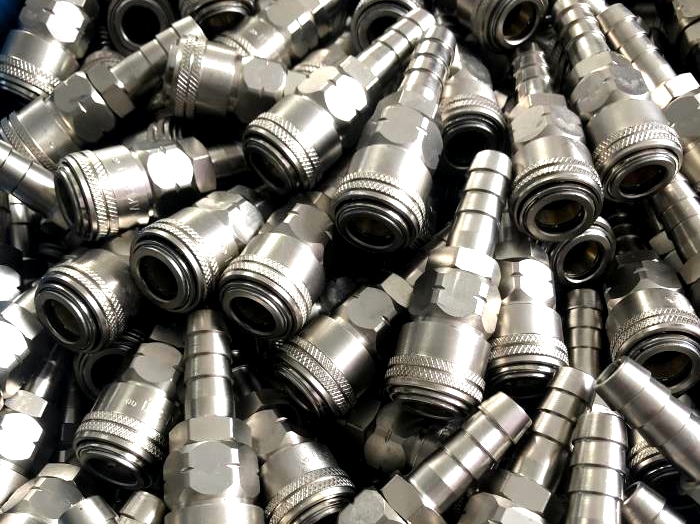

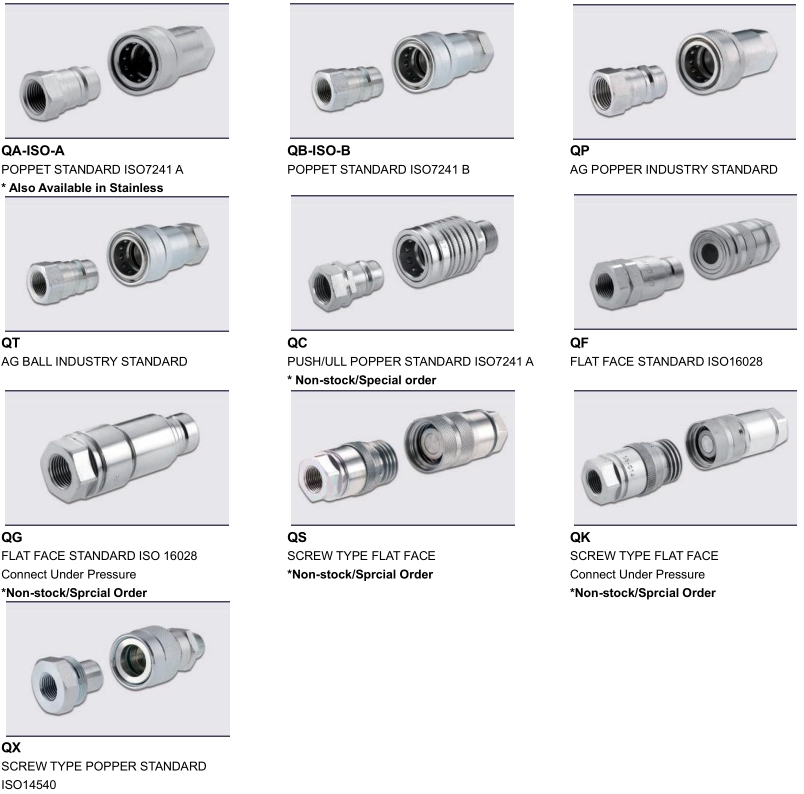

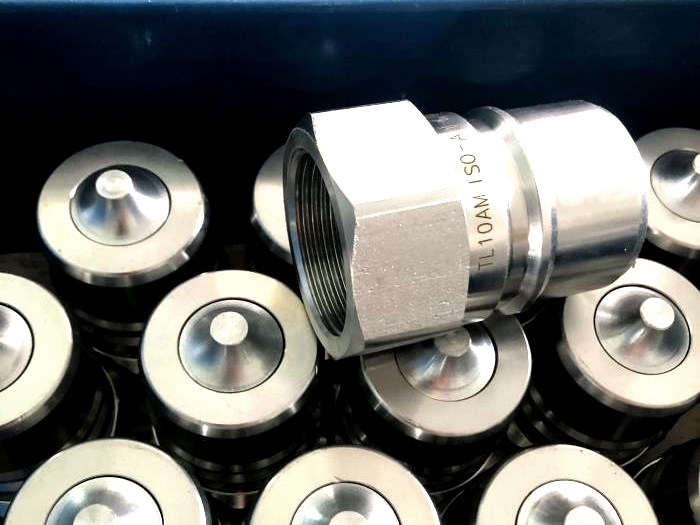

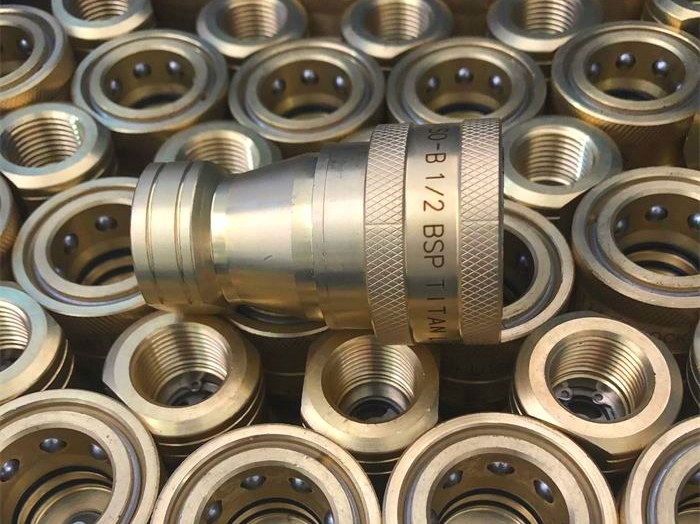

There are some pictures of hydraulic quick couplings. The two halves of the quick connector are locked together by a ball and sleeve (single and double acting) that act as a spring-loaded "locking device". Both seat valves and ball valves are available. Whether there is pressure or not, it can be connected. Our hydraulic quick couplings have a variety of terminal configurations in line with international standards.

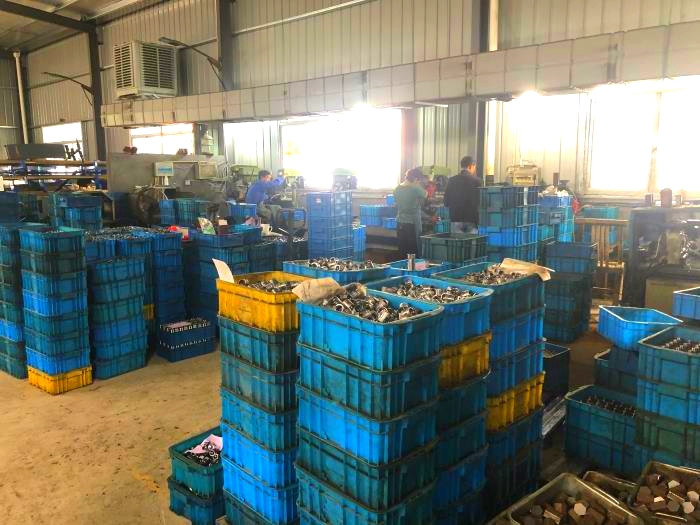

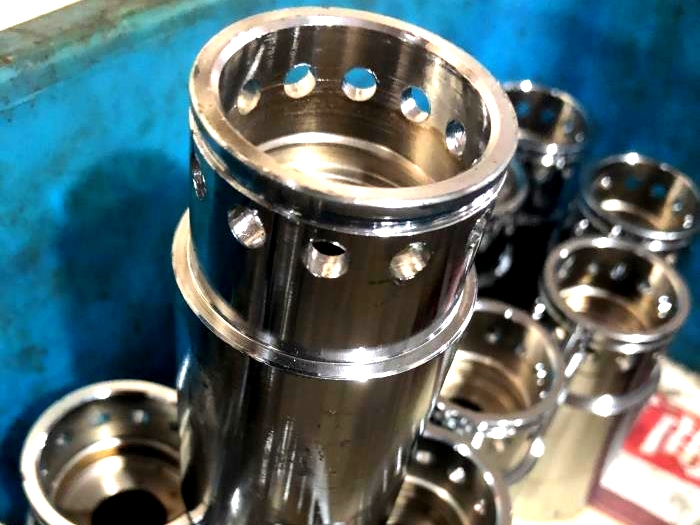

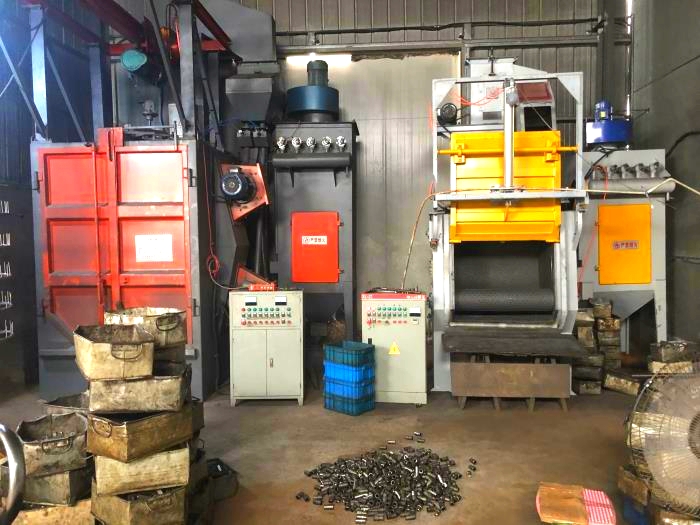

___Production Photo___

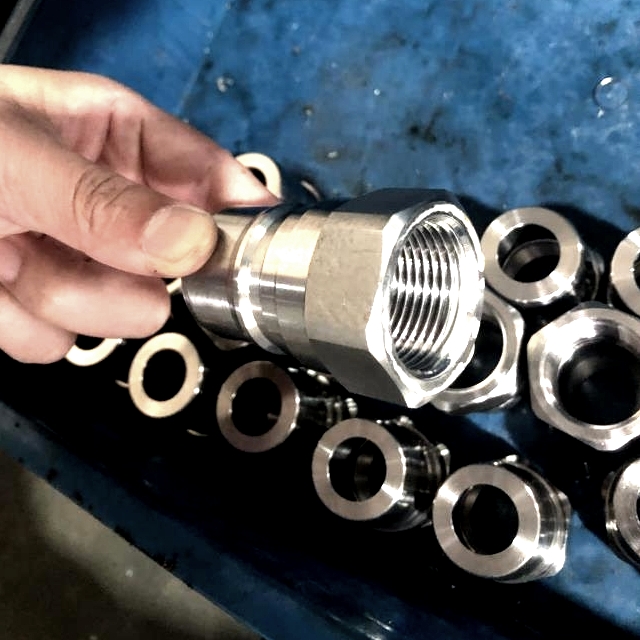

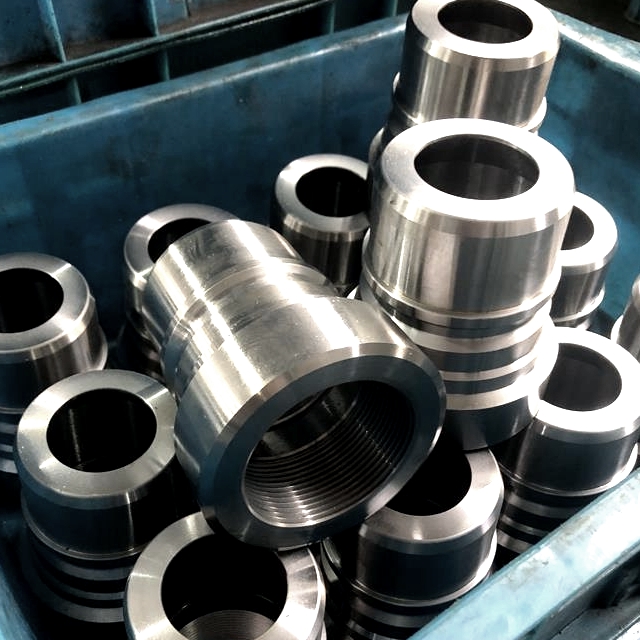

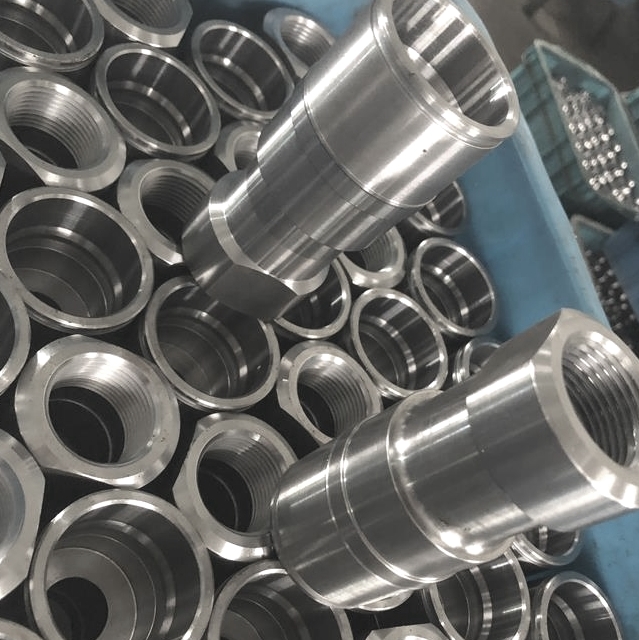

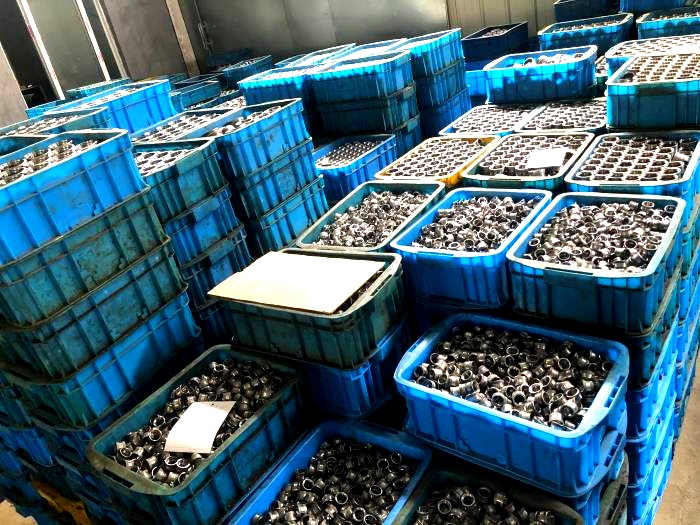

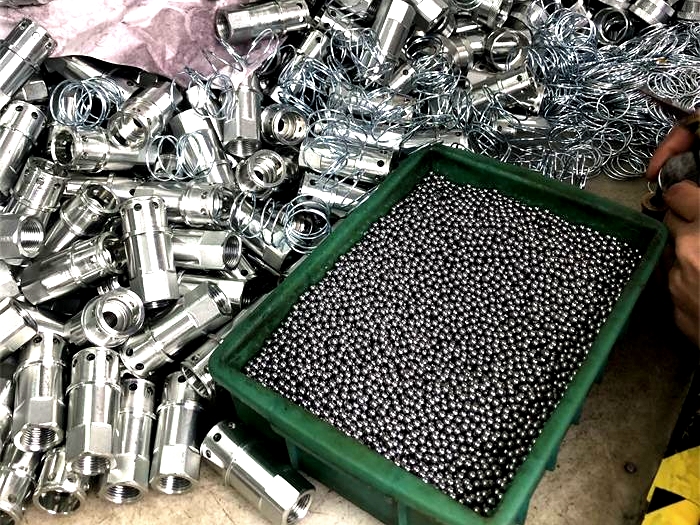

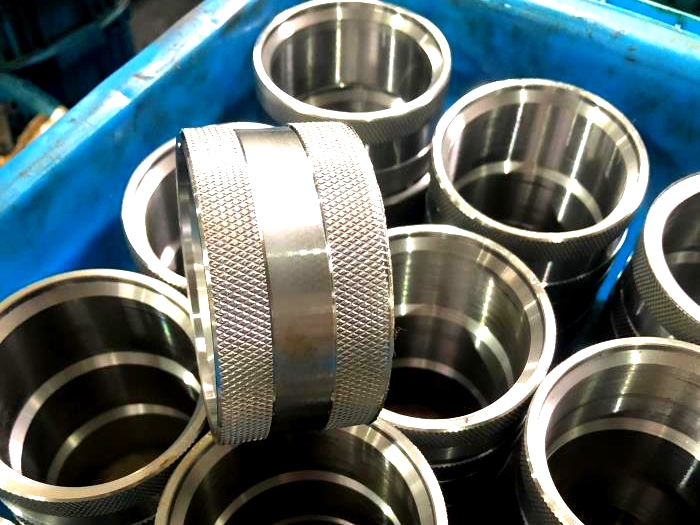

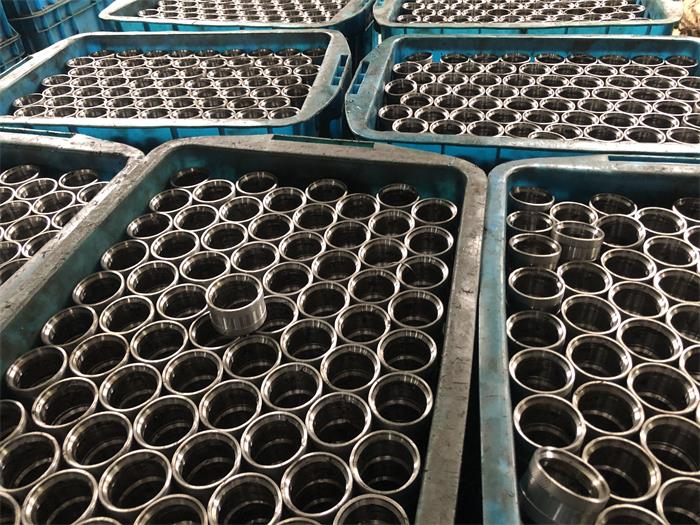

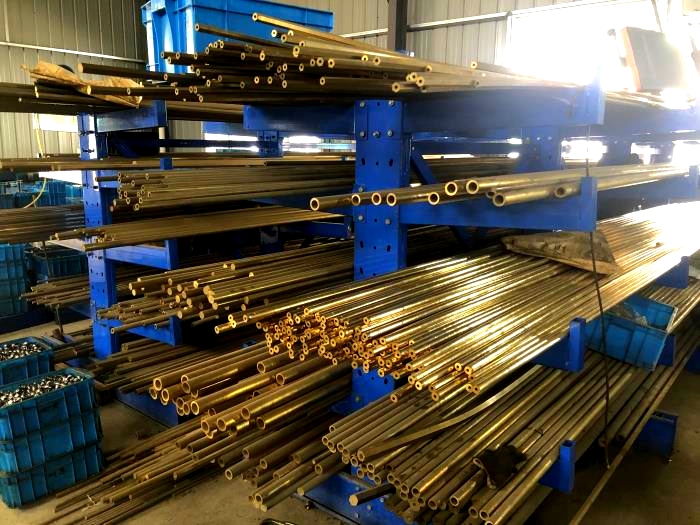

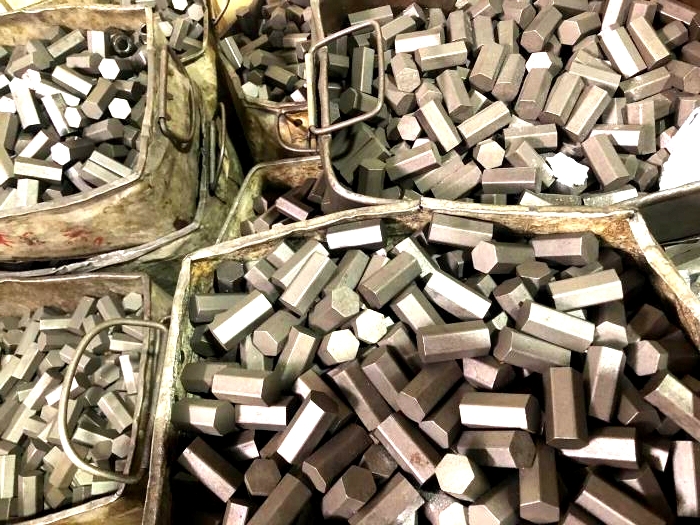

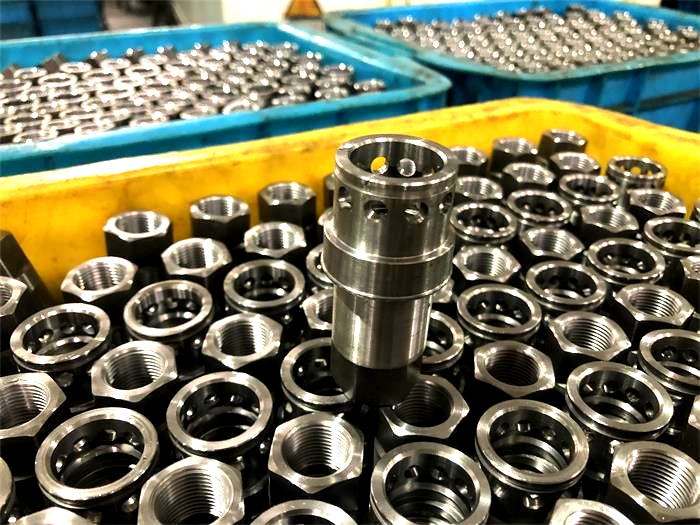

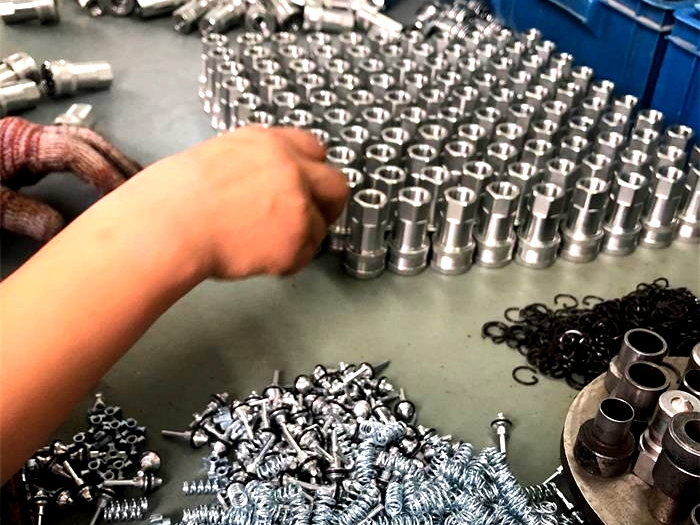

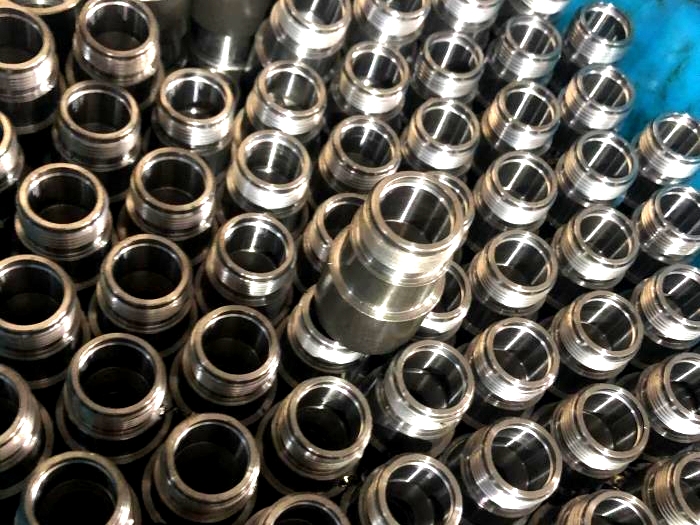

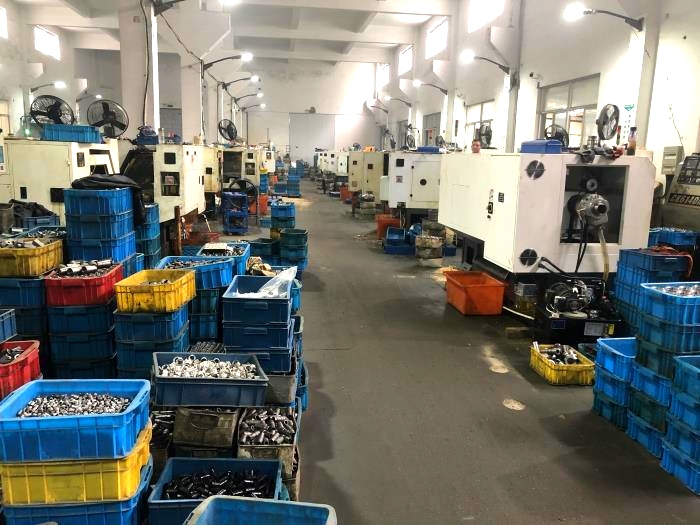

Hydraulic quick couplings can be customized according to customer requirements. The raw materials can be selected from brass, carbon steel, stainless steel and other materials. After professional cutting, they are processed by CNC lathes. After being polished and galvanized, Hydraulic quick couplings are assembled.

___Packaging Photo___

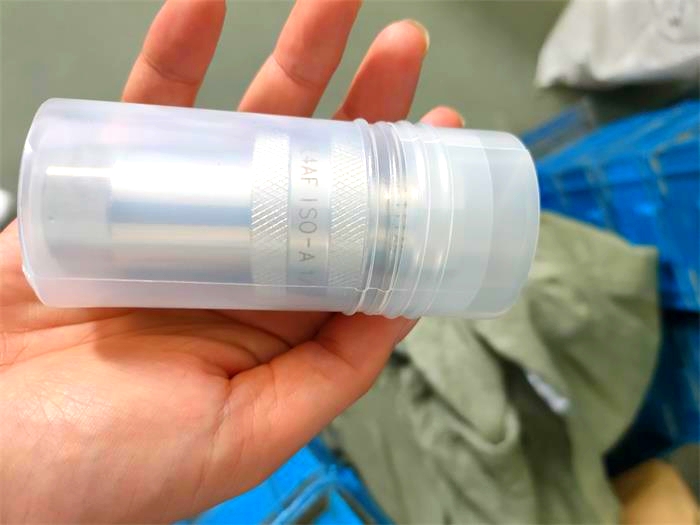

Our hydraulic quick couplings packaging process is shown as the following pictures. Each product is packed in a plastic box and placed in a carton. According to customer requirements, it can be packed in pallets or wooden boxes. Each wooden box and wooden pallet meet the export fumigation requirements. The packaging can also be customized according to customer requirements.

packaging

___Quality Control___

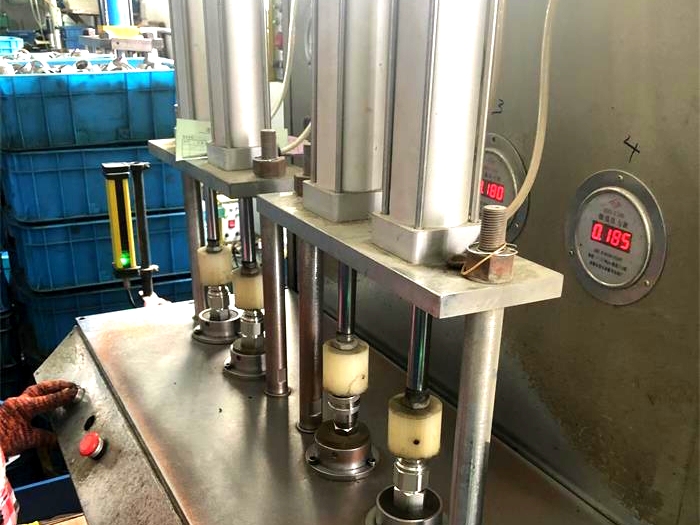

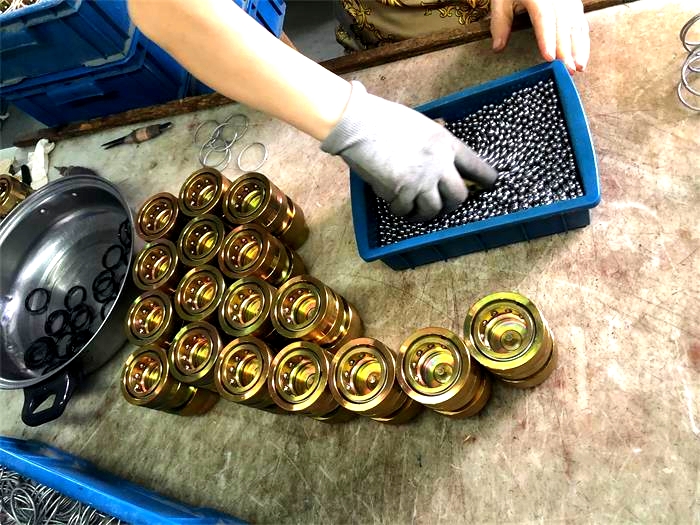

Our product quality control process starts with inspection of raw materials. First, check whether the raw materials are qualified. When the product is assembled, the quality of steel balls, springs and other components should also be guaranteed. Each finished quick connector must pass the pressure test. Only products that have passed all inspections can be put into storage for packaging. For unqualified products, our company will trace the cause, find the problem, and prevent such problems from recurring.

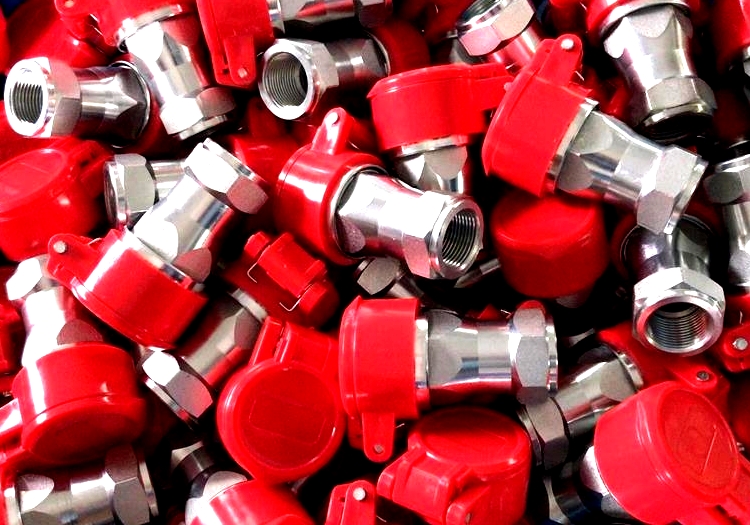

___Stock Photo___

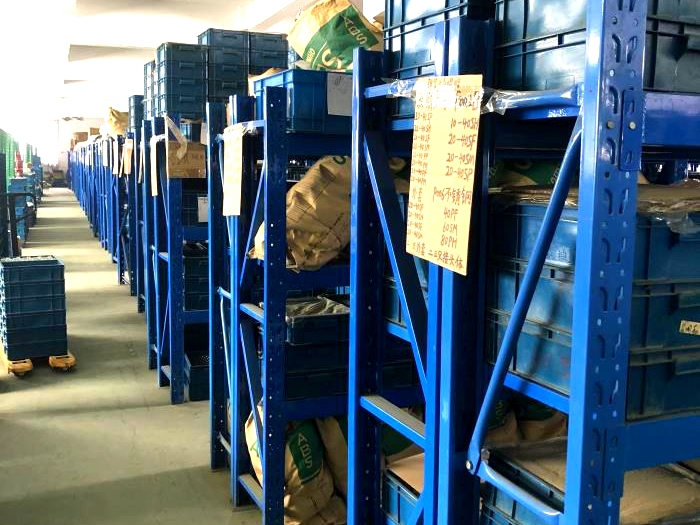

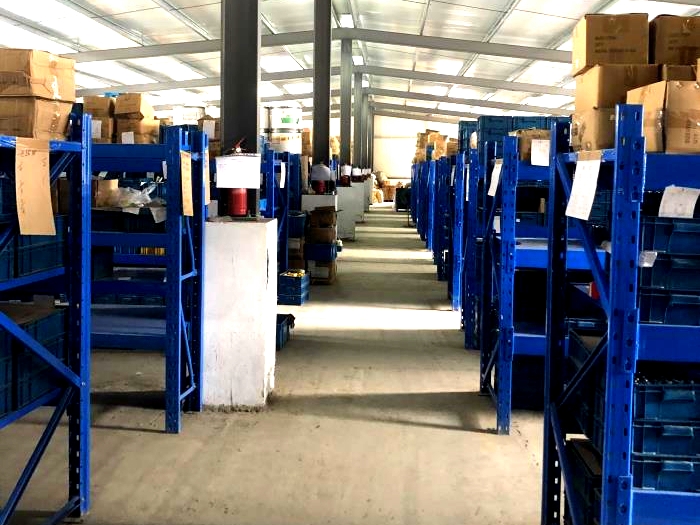

At present, our company has a warehouse of 2000 square meters with a complete inventory that implements the modern management. It only takes 1-2 working days from order to shipment. In order to meet the needs of different customers at home and abroad, our company will increase the inventory of various products from time to time according to the changes in market conditions.

JAZZY company

JAZZY was founded in 2005 as a company specialized in the designing and manufacturing of superior high-quality Hydraulic Transmission System and Pneumatic Transmission System. Based on high performance pneumatic hydraulic transmission non standard machine equipment R&D design and development to provide a variety of industry solutions.


PROFESSIONAL We have more than 7 years of industry experience and a very professional team to provide production, research and development, sales support and other services.	PRODUCT QUALITY Our product quality has passed the testing of various certification systems (here are some certifications), and we use the highest standards in the selection of product materials, and have very advanced production equipment in the product production dimension. Each product is sold to the market after rigorous testing.

SAFETY Our products have passed strict safety certification, and every user who uses our products can use them with confidence.	DIRECT SALES We have our own production base, so no other company is responsible for the production and sales of our products, so that we can provide customers with the best products and best services.

___________END USERS____________

shuju

The hydraulic transmission system occupies a very important position in the CNC machine tool. The performance of the CNC machine tool hydraulic system directly affects the quality of the workpiece, resulting in a decline in the processing capability index of the CNC machine tool. For example, the automatic control failure working mechanism produces intermittent movement, which increases the scrap rate of the workpiece, the accuracy of the product is poor or the quality is unstable, and the clamping force decreases, which causes tool damage and product scrap.

JAZZY took the initiative to send the products for inspection and spot checks. Each time our test results exceed international standards. Except for production and inspection, packaging is only carried out after passing the inspection. Final confirmation is also required before shipment.
