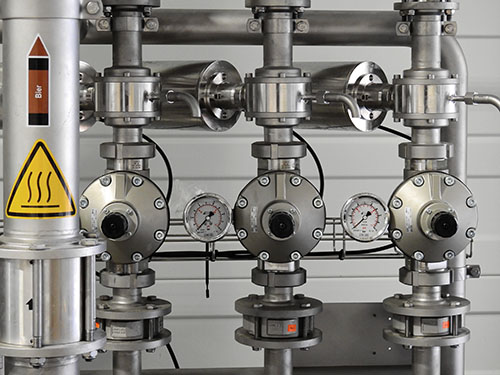

The air source of pneumatic system is pure compressed air. Therefore, we commonly used air source components mainly include air compressor, filter, pressure reducing valve, pressure gauge and oil mist. Air compressor mainly produces compressed air with air compressor hose clamp, while the filter is an equipment which can filter impurities in the compressed air, mainly water, so the filter generally has two kinds: manual drainage and automatic drainage. The pressure reducing valve works to regulate the pressure of the pneumatic circuit, maintaining the pressure constant, as well as the stability of the pneumatic system. Pressure cylinder gauges are pressure indicating instruments, usually in two units: PASCAL (Pa) and 100 kPa (Bar). The pressure gauges for Europe and The United States also use Psi. The main function of oil mist is to atomize the lubricating oil of pneumatic components.
The main function of the throttle valve is to regulate the size of the air flow and control the speed of pneumatic driving elements. The throttle valve is usually divided into two categories: inlet throttle valve and outlet throttle valve two. The inlet throttle valve directly regulates the air flow of the air supply pipe, and the outlet throttle valve controls the speed of the pneumatic driving element by adjusting the air flow of the exhaust pipe, so it has more stable characteristics than the inlet throttle control.
Reciprocating movement of cylinder, suction and placement of vacuum sucker are controlled by solenoid directional valve. The action of the solenoid directional valve is driven by the direct output electrical signal of the control system, so the solenoid directional valve actually belongs to the control element of the pneumatic system.
Magnetic switch is a sensor to detect the position of the cylinder piston. If the position of cylinder piston is detected by magnetic switch, it should be required to use a magnetic cylinder piston.
Cylinders are one of the main pneumatic driving elements and there are many types.
A vacuum sucker is a plastic element that applicates the principle of vacuum to grab products.
The main function of vacuum generator is to produce a certain degree of vacuum.
Negative pressure gauge is a gauge to detect the degree of vacuum in the gas path. It is usually used as a sensor.
A kind of quick release coupling which is mainly used for air piping and pneumatic tools. It can be connected or disconnected without tools.
