In the vast landscape of industrial machinery, gearboxes stand as indispensable components, facilitating the efficient transmission of power and motion. Among the various types of gearboxes, the double reduction gearbox has garnered significant attention for its unique design and capabilities.
This blog post delves into the intricacies of double reduction gearboxes, exploring their working principles, construction, and the distinct advantages they offer in industrial applications. We will also examine the different types of double reduction gearboxes available and discuss their potential drawbacks to provide a comprehensive understanding of this remarkable piece of machinery.

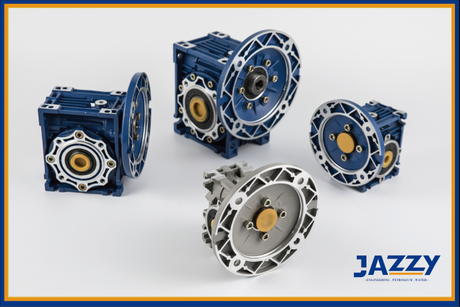

A double reduction gearbox is a mechanical device that uses two sets of gears to reduce the speed and increase the torque output of an electric motor or other power source. The gearbox consists of an input shaft connected to the motor, two sets of gears, and an output shaft that delivers the reduced speed and increased torque to the driven equipment.
The term “double reduction” refers to the fact that the gearbox reduces the speed of the input shaft twice through two separate gear sets. This design allows for a more significant speed reduction and torque increase compared to single reduction gearboxes, which only use one set of gears.
Double reduction gearboxes are commonly used in applications that require high torque output at low speeds, such as conveyor systems, material handling equipment, and industrial machinery. They are available in various sizes and configurations to suit different power and performance requirements.
In a double reduction gearbox, power is transmitted from the input shaft to the output shaft through two stages of gear reduction. The first stage consists of a pinion gear on the input shaft that meshes with a larger gear on an intermediate shaft. This initial gear set reduces the speed and increases the torque of the intermediate shaft.
The intermediate shaft then connects to the second stage of gear reduction, where another pinion gear meshes with a larger gear on the output shaft. This second gear set further reduces the speed and increases the torque, resulting in the final output speed and torque delivered by the gearbox.
The gear ratio of a double reduction gearbox is determined by the number of teeth on each gear in the two stages of reduction. The overall gear ratio is calculated by multiplying the gear ratios of the first and second stages. For example, if the first stage has a gear ratio of 5:1 and the second stage has a gear ratio of 4:1, the overall gear ratio would be 20:1 (5 x 4 = 20).
A double reduction gearbox consists of several key components that work together to achieve the desired speed reduction and torque increase. The main parts include:
Housing: The gearbox housing is typically made of cast iron or aluminum and provides a protective enclosure for the internal components. It also serves as a reservoir for the lubricating oil.
Input shaft: The input shaft is connected to the prime mover, such as an electric motor or engine, and transfers power to the gearbox.
First reduction gear set: This gear set, usually consisting of a pinion and gear, provides the initial speed reduction. The pinion is mounted on the input shaft, while the gear is attached to an intermediate shaft.
Intermediate shaft: The intermediate shaft connects the first and second reduction gear sets, transferring power between them.
Second reduction gear set: Similar to the first reduction gear set, this set further reduces the speed and increases the torque. The pinion is mounted on the intermediate shaft, and the gear is attached to the output shaft.
Output shaft: The output shaft is connected to the driven equipment, such as a conveyor or machine, and delivers the final reduced speed and increased torque.
Bearings: Bearings support the shafts and gears, allowing them to rotate smoothly and efficiently. They also help to distribute loads and reduce friction.
Seals: Seals prevent lubricating oil from leaking out of the gearbox and keep contaminants from entering, maintaining the integrity of the internal components.
Parallel shaft double reduction gearboxes have input and output shafts that are parallel to each other. This configuration is common in industrial applications due to its compact size and efficient power transmission. The gears are typically arranged in a single plane, with the first and second reduction gear sets sharing the same axis.
Right-angle double reduction gearboxes have input and output shafts that are perpendicular to each other, forming a 90-degree angle. This type of gearbox is useful in applications where space is limited, or the driven equipment requires a change in the direction of rotation. The first reduction gear set is usually a bevel or spiral bevel gear, while the second reduction gear set is a spur or helical gear.
Planetary double reduction gearboxes use a unique arrangement of gears to achieve high reduction ratios in a compact space. The gearbox consists of a sun gear, planet gears, and a ring gear. The planet gears rotate around the sun gear, while the ring gear remains stationary. This configuration allows for multiple gear ratios within a single stage, resulting in a double reduction gearbox with a smaller footprint compared to parallel shaft or right-angle designs.
Double reduction gearboxes offer superior efficiency compared to single reduction gearboxes. The two-stage reduction process allows for a more gradual speed reduction, resulting in less energy loss during power transmission. This increased efficiency translates to lower energy consumption and reduced operating costs in various industrial applications.
The dual-stage reduction design of double reduction gearboxes enables them to generate higher torque output than single reduction gearboxes. This characteristic makes them suitable for applications that require substantial torque, such as heavy-duty machinery, conveyor systems, and material handling equipment.
Despite their high torque output, double reduction gearboxes maintain a relatively compact size. The two-stage reduction allows for a smaller overall footprint compared to achieving the same reduction ratio with a single reduction gearbox. This space-saving advantage is particularly beneficial in applications where machine space is limited.
Double reduction gearboxes provide smoother and quieter operation compared to single reduction gearboxes. The two-stage reduction helps distribute the gear mesh forces more evenly, reducing vibration and noise levels. This feature is advantageous in applications where low noise and minimal vibration are desired, such as in packaging machinery or food processing equipment.
Double reduction gearboxes typically have a higher initial cost compared to single reduction gearboxes due to their more complex design and additional components. The increased manufacturing complexity and materials required contribute to the higher upfront investment.
The presence of two gear reduction stages in double reduction gearboxes necessitates more frequent maintenance compared to single reduction units. The additional gears, bearings, and lubrication points require regular inspection, lubrication, and potentially more frequent component replacements to ensure optimal performance and longevity.
Double reduction gearboxes tend to be heavier than their single reduction counterparts due to the additional gears, shafts, and housing components. This increased weight can be a consideration in applications where weight is a critical factor, such as in mobile equipment or weight-sensitive machinery.
Double reduction gearboxes are commonly used in material handling equipment, such as conveyors, hoists, and cranes. Their high torque output and efficiency make them suitable for lifting and transporting heavy loads, while their compact size allows for integration into space-constrained systems.
Various industrial machines, such as mixers, agitators, and extruders, employ double reduction gearboxes. The smooth operation and high torque capabilities of these gearboxes enable precise control and reliable performance in demanding industrial environments.
Double reduction gearboxes find applications in agricultural machinery, including tractors, harvesters, and irrigation systems. Their robust construction and efficient power transmission make them suitable for the rugged conditions and heavy-duty requirements of agricultural operations.
In packaging machinery, double reduction gearboxes are used to drive conveyor systems, filling machines, and labeling equipment. Their compact size, smooth operation, and ability to deliver precise speed and torque control are advantageous in these applications, ensuring accurate and efficient packaging processes.
