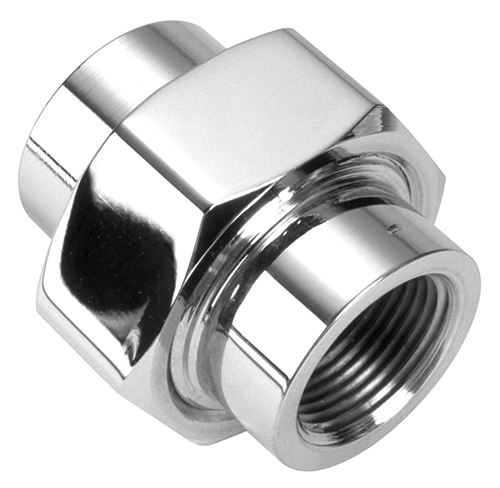

This is a domestic tapered pipe thread for fuel delivery, which can be used for both external and internal threaded end joints. NPTF outer threads can be fitted with NPTF, NPSF or NPSM inner threads. NPTF types of pipe fittings are similar to BSPT pipes and fittings, but they are cannot be interchanged with each other. Most size threads have different pitches and have a tooth angle of 60 degrees, while BSPT threads have a tooth angle of 55 degrees.
SAE (45 degrees cone angle) is the term used for pipe joints with 45 degrees cone angle or cone holder. This joint is commonly used for brass hose connector because the material is easily machined to an angle of 45 degrees. This type of coupling is suitable for low pressure applications such as fuel and refrigeration lines. SAE 45 degrees cone angle outer thread can only fit with SAE 45 degrees cone angle inner thread. The SAE outer threads are straight and have a 45 degrees conical seating surface. The SAE internal thread is also straight and has a 45 degrees conical seat surface. The seal is formed at a 45 degrees conical seating surface. Threads of some sizes are identical to SEA 37 degrees taper angle threads. The cone angle should be measured carefully for the zone. JAZZY offers 45 degree SAE flange one piece fitting, 45 degree BSP female one piece fitting, and etc.
O-ring end seal outer thread can only fit with O-ring end seal inner thread. Outer thread is straight thread with O-ring and inner thread is straight thread with sealing end face. The outer thread is sealed at the O-ring while the inner thread is sealed at the sealing end face. Jazzy can furnish BSP Male with O-Ring.

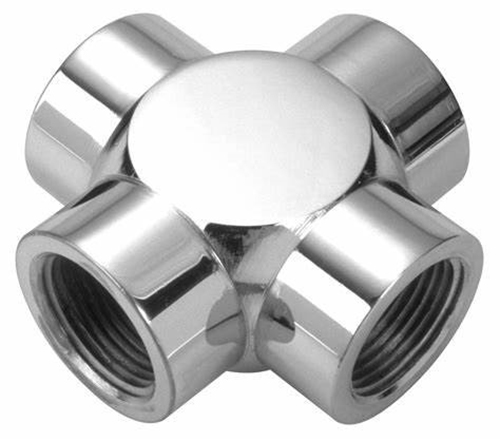

British Standard Huai Straight Pipe (BSP) thread, also known as Wyeth Standard Huai thread. It can be either a straight thread (BSPP) or a tapered thread (BSPT) with an inverted cone. Port connections are usually threaded via BSPP.BSPP (straight) outer threads can be fitted with BSPP (straight) inner threads or internal threaded ports. The BSPP outer thread is straight with a 30 degree taper base. The BSPP internal thread is also straight with a 30 degree taper base. The internal threaded ports are straight threaded with sealing end faces. Seals at the ports are formed by O-rings or soft metal pads on the outer threaded joints. JAZZY can provide hydraulic hose with fitting and 90 degree BSP feamle znic-nickel plated.
BSPT outer threads can be fitted with BSPT inner threads or BSPP inner threads. The BSPT outer thread is a tapered thread. When it fits with BSPT internal threads or BSPP internal threaded ports, a seal is formed at the threads. BSPT joints are similar to NPTF joints but are not interchangeable. Most of their threads have different pitches, with a thread profile angle of 55 degrees and a NPSM thread profile angle of 60 degrees. BSPT Male, Stainless Steel and BSPT Male One Piece Fitting are available in JAZZY.
