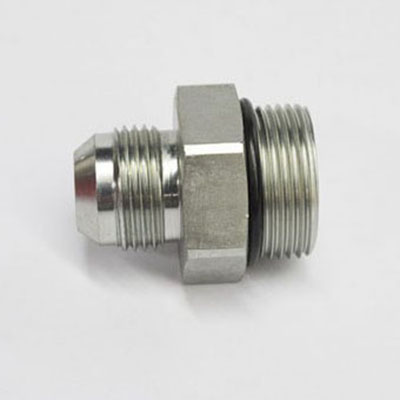

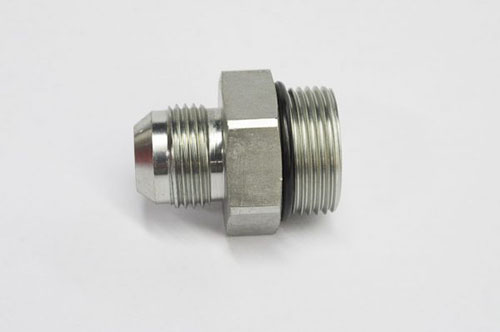

How Much Do You Know About Hydraulic Hose Fittings?

The hydraulic pipe fittings is a part connecting the high-pressure oil pipes in the hydraulic system, which is categorized into the hydraulic hose and high-pressure ball valve. There are many types of hydraulic pipe fittings, such as brass pipe fittings and high-pressure hydraulic hose.

And the quick release coupling like high pressure quick release coupling, one with one-way valve, another without one-way valve. In the application with a one-way valve, the one-way valve end is connected with the air source. When the check valve is disconnected, the one-way valve is automatically closed. When connected, the movable end thimble opens the check valve. Self-locking is the use of a steel ball embedded in the groove, and at the same time by the "cone-cylinder" sleeve to lock the steel ball valve. As the demand has risen increasingly, there are many ball valves having assorted functions like stainless steel hydraulic ball valve.

How can you install it correctly and safely? Here are some steps needed to be taken.

（1） Use a joint as the mother body to press the nut and ferrule onto the pipe. There are mainly hydraulic ferrule fittings, ferrule type end straight connector, ferrule type tee pipe joint ,and so on.

（2） Do not add sealant and other fillers. In order to achieve a better sealing effect, some people apply sealant on the ferrule. As a result, the sealant is flushed into the hydraulic system, resulting in the blockage of the hydraulic element hole.

（3） When connecting the pipeline, make sure that the pipe has enough deformation allowance to avoid drawing force on the pipe.

（4） When connecting the pipeline, it should be avoided to be subjected to lateral force. If the lateral force is too large, the sealing will not be tight.

（5） When connecting the pipeline, it should be done at one time to avoid multiple disassembllies, otherwise the sealing performance will be worse.

It is very dangerous to install the high-pressure hose joint, there are also some rules for people to protect themselves from being harmed.

(1) When the hose is moving or stationary, it should not be excessively bent or bent at the root. It should be bent at least 1.5 times of its diameter;

(2) When the hose moves to the extreme position, it should not be too tight and should be relatively loose;

(3) The torsion deformation of the hose should be avoided as far as possible;

(4) The rubber tube shall be kept away from the heat radiation components as far as possible, and the heat insulation board shall be used when necessary;

(5) External damage of the hose should be avoided, such as long-term friction on the surface of isomorphic components in use;

(6) If excessive deformation is caused by the self-weight of the hose, supporting parts shall be provided.

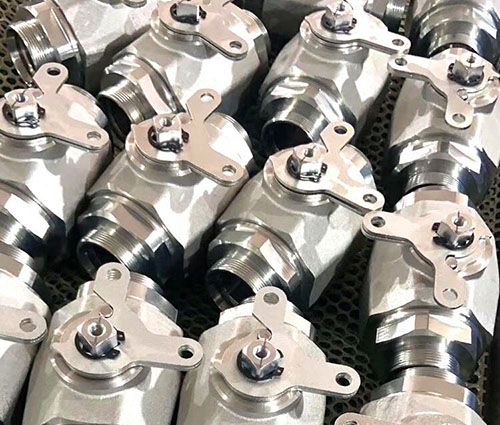

Finally, I want to talk about the JAZZY ball valves, whose design is based on the“floating ball” rules, which allows the ball to turn easily between the ball. Other ball valves like stainless steel flanged ball valves are very prevalent in the world. A positive seal is maintained by fluid pressure acting on the surface of the ball and having a constant contact between the ball seal and the ball. The ball is functioned by a sealed spindle with a projecting square end to which the control handle or optional actuator is attached tightly. Ball valves especially stainless steel 3 piece ball valves are intended to be used as on/off flow control devices and are not to be used to throttle fluid flow. The Valves should always be either fully open or closed.
