Air cylinders are mechanical devices that generate force from compressed air. They are commonly used for lifting, moving and pushing objects. Also known as pneumatic cylinders, they are essential in various mechanical systems, from industrial machinery to everyday devices. These devices use compressed air for both simple linear motions and complex actions.
Air cylinders can be classified into two main types: single-acting and double-acting cylinders. Single-acting cylinders have air supply ports on one end. Additionally, they have a spring mechanism on the other end. This mechanism returns the piston to its original position when the air supply cuts off. On the other hand, double-acting cylinders have air supply ports on both ends. Because of this, air can enter and exit the cylinder, generating force in both directions.

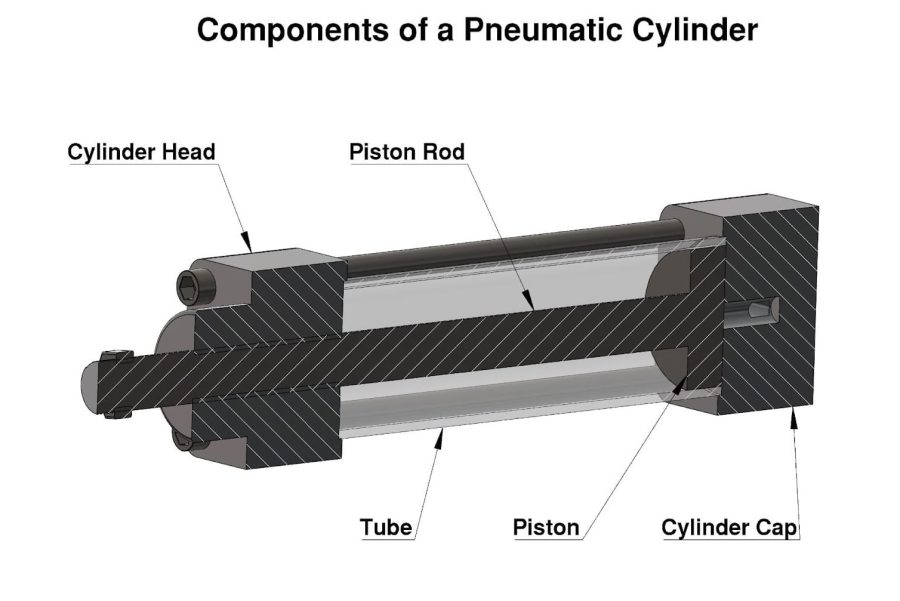

Cylinder Body: This is the outer casing of the air cylinder. Pneumatic cylinders usually have an aluminium or stainless steel body. It houses the internal components and provides structural support as well.
Piston: The piston moves back and forth within the cylinder body. It separates the cylinder into two chambers. In addition, it is responsible for generating linear motion.
Seals: Seals are placed around the piston and within the cylinder. They prevent air leakage and maintain pressure.
Valves: Air cylinders feature intake and exhaust valves that control the compressed airflow into and out of the cylinder. These valves can operated either electronically or mechanically.
Ports: Ports serve as entry and exit points for compressed air. They allow air to enter the cylinder to exert force on the piston. At last, it also allows air to exit once the desired motion is achieved.

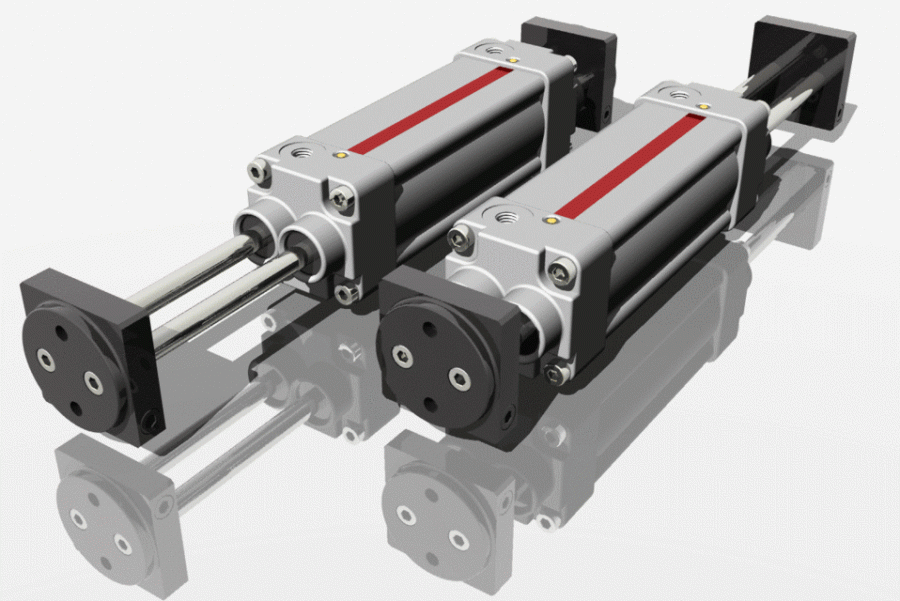

Air cylinders work on the principle of converting the energy of compressed air into mechanical energy. They convert pneumatic pressure into motorised force. When compressed air is supplied to the cylinder, it enters the chamber and pushes the piston, which is connected to a rod, outwards. The force generated by the piston is used to perform various tasks.
Air cylinders are beneficial in automotive manufacturing for clamping, lifting and pressing tasks. They help in securely holding workpieces in place during machining or assembly processes. In addition, they can lift heavy components to help technicians in flawless installations. Users can also apply controlled pressure for operations, such as forming metal sheets or panels with these pneumatic tools.
Pneumatic cylinders are a valuable asset for the packaging, sorting and handling of edible products. They can control the movement of conveyor belts and maintain a smooth, hygienic flow process. Moreover, these tools can operate gates or diverters for sorting similar products. Air cylinders can also help fill or seal containers in packaging lines. They ensure smooth and efficient operations while meeting hygiene standards.
Air cylinders are essential in aerospace manufacturing for positioning, actuation and control tasks as well. They precisely position aircraft components during assembly procedures. In addition, these cylinders actuate control surfaces, such as flaps or landing gear. They are suitable for operating mechanisms for opening and closing cargo doors.
On construction sites, they can power pneumatic tools like jackhammers and nail guns. Furthermore, they are suitable for lifting and placing heavy machinery. These magnificent tools can also help in door and barrier automation.
Air cylinders can also be used in textile manufacturing for yarn tensioning, loom shedding and fabric cutting. They help maintain consistent tension in yarns during spinning or weaving processes. In addition, these cylinders can actuate shedding mechanisms in looms to create specific patterns. Users can also operate several cutting devices for precise fabric trimming. As a result, air cylinders empower smooth and efficient textile production.
Just like any other tool, air cylinders too require lubrication to function efficiently. Lubrication helps reduce friction between the moving parts of the cylinder, eliminating wear and tear. Additionally, lubrication helps prevent corrosion and rust, which can cause the cylinder to malfunction.
There are different types of lubrication used in air cylinders, such as oil, grease and dry lubricants. The type of lubricant used depends on the application of the cylinder and the environment in which it operates.
