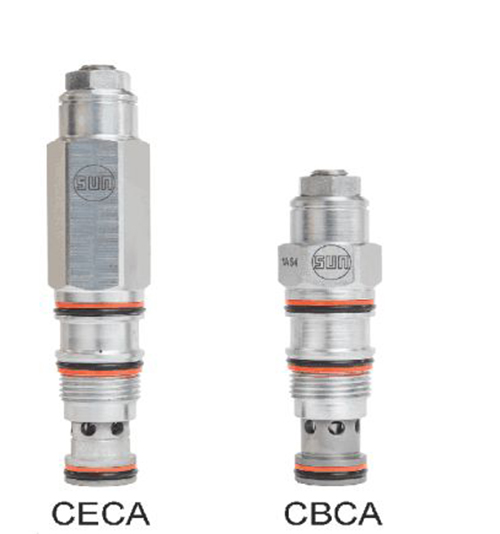

The LoadAdaptive balance valve uses the innovative mechanical structure, which can maintain the stable movement of the load, and has the characteristics of LoadAdaptive and pilot pressure. Low LoadAdaptive is used when stability is needed, and high LoadAdaptive is used when the actuator does not move or stability problem is not easy to occur. The energy consumption is less when the LoadAdaptive is high.
The energy saving test shows that the LoadAdaptive valve can keep the same or faster movement speed of the cylinder or motor like hydraulic cylinder fittings, and save 30% energy compared with the standard balance ball valve, and maintain excellent stability.
The balance valve can be considered as a relief valve that adjusts its pressure to the expected maximum load pressure. Certainly, you can get help from the electronic pressure gauge to measure. Most balance valves have a pilot control function to reduce the actuation pressure required for valve opening as the pilot port pressure increases.
The choice of LoadAdaptive is the result of a compromise between stability (low lead ratio) and efficiency (high lead ratio). For a hydraulic circuit with an overshoot load, the most important point to select the appropriate balance valve is to ensure the performance of the system, especially to seek the balance point between energy-saving and dynamic stability. Of course, hydraulic power transmission systems also need to ensure the performance. In many cases, due to the limited types of balance valves available for installation, efficiency has to compromise for stability. Just like the stainless steel hydraulic ball valve, it needs to compromise for stability.
Energy efficiency is particularly important in machinery because these devices are usually powered by fuel and the volume of the mailbox is limited.
LoadAdaptive balance valve can be used in almost any standard balance valve applications. However, not all applications can take advantage of the additional features of the LoadAdaptive balance valve. It is not economical to use the LoadAdaptive balance valve instead of the cheaper standard balance valve in these applications. It’s also related to the supplier like stainless steel ball valve supplier. As many suppliers have different systems and processes to produce their products, the price is distinct such as 2 inch ss ball valve price.
If we want to make good use of the LoadAdaptive balance valve, we must know deeply about it so as to prevent some losses. The following contents will mainly talk about where the LoadAdaptive balance valve can be used:
Load overrun or gravity drop
Energy or fuel efficiency is very important
The stability of load control is very important
The lifting - lowering - lifting cycle of the equipment against gravity is repeated and regular
Minimum load pressure above 500PSI (35bar)
The maximum load pressure is not higher than 4000psi (280bar) as you can use a hydraulic pressure gauge to measure it.
Pilot pressure below 2000psi (140bar)

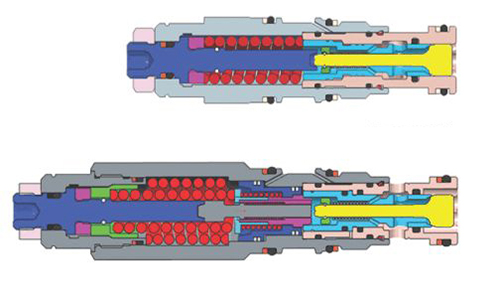

The LoadAdaptive balance valve is essentially the same as other balance valves. The LoadAdaptive balance valve draws lessons from the structure of many existing standard balance valves and uses the same regulating mechanism. Therefore, many balance valves with LoadAdaptives ranging from 0 to 10 and with different throttling types (standard, semi limiting, full limiting, and over limiting) have corresponding variable pilot types.
Even after the most suitable standard balance valve has been selected, the LoadAdaptive balance valve can be selected to further improve the efficiency. Therefore, the energy-saving effect is compared with the standard balance valve with the highest efficiency. And Jazzy as an industrial hose supplier, will provide the best products for clients as they have the strictest standard, most professional teams, and potent background. Their products like pressure gauge with snubber is under tough scrutiny and comply with the grave standards.
