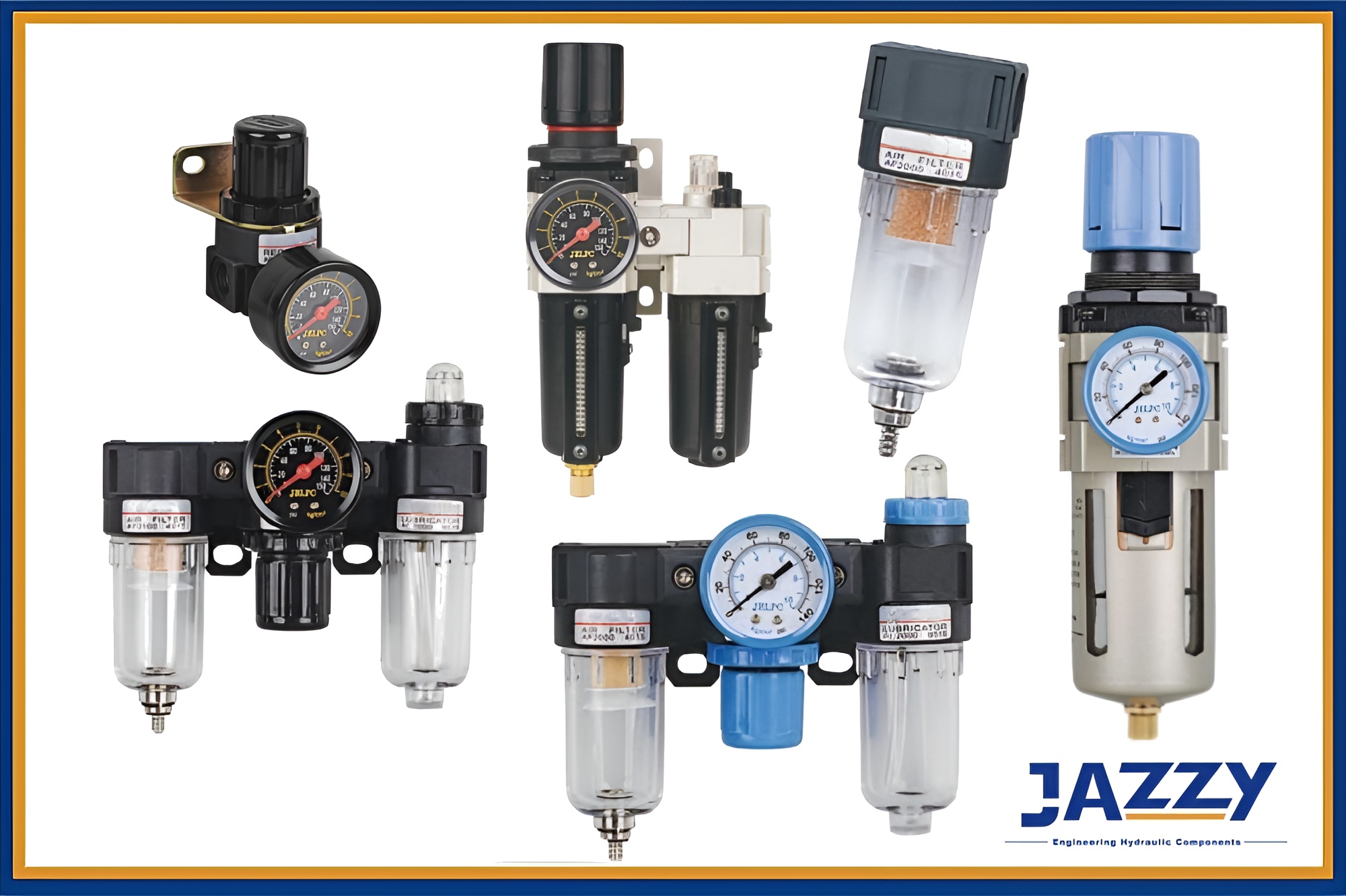

Pneumatic Filters: How They Operate, Types, and Maintenance Tips

Pneumatic filters are designed to eliminate detrimental water and contaminants from compressed air streams. They are a crucial system component that works to ensure the longevity and optimal performance of pneumatic machinery.

This article will cover how pneumatic filters operate, the different types of pneumatic filters, and how to conduct maintenance.

How Pneumatic Filters Operate

For intricate machinery to function efficiently, compressed air must be devoid of water and particles.

Pneumatic filters ensure this through one of two primary mechanisms:

• Utilizing media to trap particles while permitting air passage

• Employing a membrane that selectively permits air passage while blocking contaminants

4 Types of Pneumatic Filters

To facilitate efficient air filtration, it’s imperative to grasp the diversity of filters and the media they employ. Industrial applications predominantly utilize the following types of pneumatic filters:

Water Separators

Vital for safeguarding pneumatic components against water-induced damage, water separators efficiently extract moisture and water-borne impurities. Preventing the ingress of water into instruments like spool valves and pneumatic cylinders is critical, as it can lead to malfunction or corrosion.

Particulate Filters

Debris and rust particles are common culprits behind the premature wear of pneumatic systems. Particulate filters, featuring pleated designs for enhanced surface area, adeptly trap dirt and dust particles, thereby prolonging the machinery’s lifespan.

Coalescing Filters

Excelling at eliminating water, oil, and rust from air supplies, coalescing filters operate by directing airflow from the inside to the outside of the filter element. As air traverses the filter, solid particles are captured, while liquids coalesce into droplets, subsequently draining away.

Norgren Coalescing Filter

Adsorption Filters

Employing a solid filter medium, adsorption filters effectively remove soluble fluids from compressed air streams. This process involves the attachment of substances to the filter surface, making adsorption filters ideal for applications requiring high air quality, such as breathing air preparation and food processing.

Norgren Absorbing Filter, F74V Series

Maintenance of Pneumatic Filters

Achieving optimal air performance through ongoing maintenance is essential. However, the maintenance needs of pneumatic filters vary based on environmental conditions.

Higher debris levels necessitate more frequent cleaning. A notable indication that cleaning is required is a significant pressure drop, which compromises filter efficacy. It’s important to meticulously follow safety protocols during servicing.

Notably, certain components, like the service indicator and automatic/manual drain, should never be maintained.
